PIPE CLAMP FRSN 15-19 M8/M10

Name: PIPE CLAMP FRSN 15-19 M8/M10
SKU: 4006209494592
Price: 0.68 EUR
Availability: InStock

€0.68 €0.80 incl. tax

89 in stock

Guaranteed Safe Checkout

Free shipping on orders over €20
Delivers in 3 - 7 Working Days

SKU: 4006209494592 Category: Installation Systems

Art.-No. 49459

fischer Pipe clamp FRSN 15 – 19 M8/M10

Top Features

Two screws allow for ideal adaptation to the outer pipe diameter.
Loss protection of screw.
Connecting nut with combination thread

The two-screw pipe clamp without sound insulation insert

Advantages

The FRSN without the sound insulation insert is ideal for use in industrial applications and plastic pipes.
The combination connecting nut with thread M8 / M10 allows for optimised mounting choices.
The two screws enable ideal adaptation to suit the outer pipe diameter.
The screw’s safety feature ensures trouble-free installation.

The fischer pipe clamp FRSN is a two-screw pipe clamp made from zinc-plated steel in material quality DD11 with combination connecting thread M8/M10 without a sound insulation insert. The two-screw version enables optimised adjustment in line with the outer diameter of the pipe. Together with the combination connecting thread, this increases flexibility. This enables plastic and metal pipes with an outer diameter of 15 to 219 mm to be securely and cost-effectively fixed in buildings with a threaded rod or stud screw.

Properties

Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
Zinc plating: electro zinc-plated
Connecting nut: resistance welded M8 / M10 SW 13, M10 / M12 SW 17
Locking screw: flat head screw with combination recessed head

Applications

Fixing of metal or plastic pipes without sound insulation requirements with threaded rods or stud screws (e.g. in industrial constructions).
For use in dry interior areas.

Assembly instruction

Installation FRSN

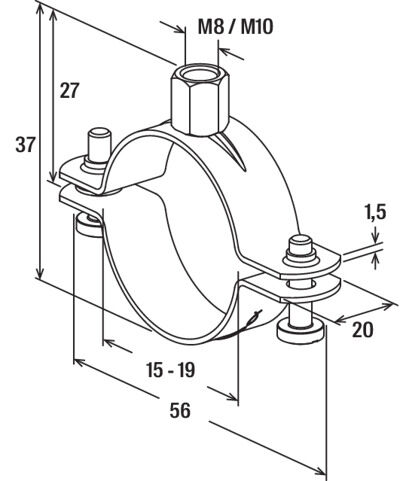

Technical Data

Thread (A)	M8 / M10
Size	3/8 in
Clamping range (D)	15 – 19 mm
Width (B)	56 mm
Height (H)	37 mm
Width x thickness clamp band (b x s)	20 x 1.5 mm
Height (Z)	27 mm
Locking screw	M6
Max. recom. static load (centr. tension) (N_rec)	1,5 kN
Amount	100 pcs.
GTIN (EAN-Code)	4006209494592
