FRS-L 46-52

Name: FRS-L 46-52
SKU: 4048962269628
Price: 1.48 EUR
Availability: InStock

€1.48 €1.75 incl. tax

1446 in stock

Guaranteed Safe Checkout

Free shipping on orders over €20
Delivers in 3 - 7 Working Days

SKU: 4048962269628 Category: Installation Systems

Art.-No. 539450

fischer Pipe clamp Universal FRS-L 46 – 52

Top Features

Profiled clamp band for outstanding rigidity and stability
Optimised hold between sound insulation insert and clamp band
Combination thread M8/M10 for flexible connection options
Loss-secured screws
Fire protection test R120
MLAR R30 sample cable system test

The light two-screw pipe clamp with a rapid locking mechanism and combination connection nut

Advantages

The fire inspection report and the sound insulation report guarantee objectively tested functional safety.
The unique rapid-locking mechanism with crimped edges allows a secure and time-saving installation.
The clamp band with crimped edges gives a tight fit of the sound insulation insert and prevents it from slipping out when aligning the pipe.
The two screws allow a perfect adaptation of the pipe clamp to suit every outer pipe diameter.
The connecting nut with combination thread M8 / M10 enables an optimised warehousing.
The screw’s loss protection guarantees an easy installation.

The fischer pipe clamp FRS-L Universal is a two screw pipe clamp made from zinc-plated steel in material quality DD11 with an M8/M10 combination thread and a sound protection certificate. The rapid-locking mechanism guarantees a quick and easy installation. The two-screw version enables optimised adjustment in line with the outer diameter of the pipe. Together with the combination connecting thread, this increases flexibility. This enables pipelines with an outer diameter of 8 to 119 mm to be fixed with a threaded rod or stud screw indoors in accordance with the fire protection requirements of fire resistance class R 120 and MLAR. With a chlorine-free and silicone-free sound insulation insert, the pipe clamp meets the requirements of DIN 4109.

Properties

Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
Zinc plating: electro zinc-plated
Connecting nut: resistance welded, M8 / M10 SW13
Locking screw: flat head screw with TX drive
Material sound insulation insert: SBR/EPDM; chlorine-free; silicone-free
Sound insulation: for DIN 4109
Temperature range: -40 °C to +100 °C
Hardness: 55 ± 5° Shore A
Fire behaviour: DIN 4102: Class B2

Applications

For simple and easy fixing for pipes using threaded rods or stud screws.
For use in dry interior areas.

Approval

FEB/FS-80/17 – 1
GS 3.2/18-120-2

Installation FRS-L Universal

Installation FRS-L Universal w6 m l 02 frs l f sall aqq v1 w6 m l 03 frs l f sall aqq v1 w6 m l 04 frs l f sall aqq v1

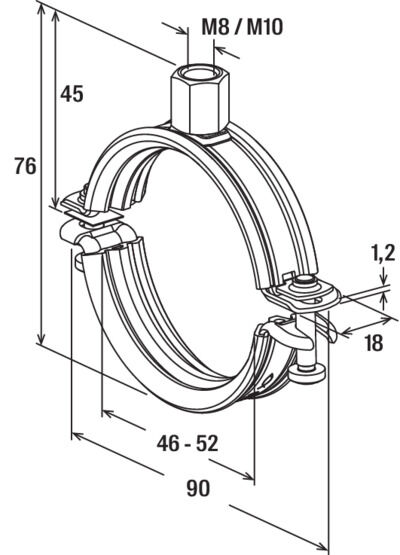

Thread (A)	M8 / M10
Size	1 1/2 in
Clamping range (D)	46 – 52 mm
Width (B)	90 mm
Height (H)	76 mm
Width x thickness clamp band (b x s)	18 x 1.2 mm
Height (Z)	45 mm
Locking screw	M5
Max. recom. static load (centr. tension) (N_rec)	1,14 kN
Amount	25 pcs.
GTIN (EAN-Code)	4048962269628

w7 cgma2 539450
